Enterprise NX-01 [16042007 0030]







The Electronics

There are a few areas where model needs to be lit, mainly:

A. Windows

B. Spotlights

C. Warp Nacelles

D. Deflector Dish

E. Bussard Collectors

F. Navigation lights

G. Navigation Strobes

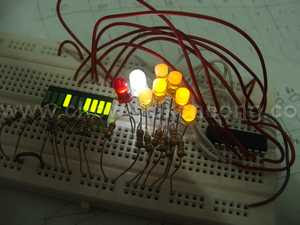

This is the picture showing the prototype in its basic configuration. The 6 orange LEDs are going to be the 6 red LEDs at the Bussard Collectors. The red LED is for the Green/Red navigation lights while the white LED are for the navigation strobes. The green LEDs at the bargraph are to represent different area of the ship that needs to be lit up in sequence. They will be replaced with relays later on.







To Be Continued
